SINTERMESH CARTRIDGE

SINTERMESH CARTRIDGE

Feature

●Differential pressure resistance
Because filter media is sintered, there is no sieve opening and filtration accuracy is maintained.

●Cleanliness
Superior in cleanliness because it is ultrasonically cleaned with RO water.

●Pressure resistance
Filter media is a three-layer structure and is suitable for liquid filtration with excellent pressure resistance and high viscosity.

●Chemical resistance
Alkaline and acid type chemicals are available.

●Heat-resistance
Heatproof temperature : (-190℃~)+400℃

●Reuse
It is economical because it can be washed and reused

●Configuration
Compatible common products applicable (OD φ50 ~φ70 mm, Height 250, 500, 750 mm), Can be upgraded to general filtration equipment.

Specification

products

Filter composition

Media & Support: SUS316L,  End Plate: SCS14, Other: SUS316

Filtration accuracy (Nominal)

 1, 3, 5, 10, 15, 20, 25, 30, 40μ

Filtration area (㎡)

10 20 30
Pleated type 0.15 0.30 0.45
Cylindrical type 0.04 0.09 0.13

Pressure resistance

Forward Flow: 0.86 MPa, Reverse Flow: 0.07 MPa

Structure

Mounting structure


  • H type(Flat gasket type)

  •    W type(222O‐ring type)

  •  F type(226O‐ring type)

Outline drawing


  • JSP(Pleated type)

  • JSC(Pleated type)

Flow characteristic

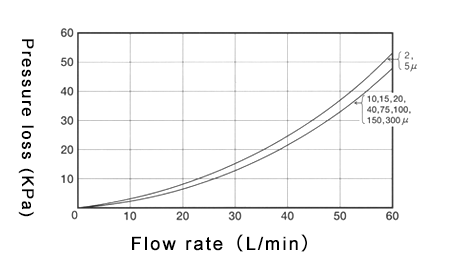

  • Water
    ※Including housing resistance

    〈Conditions〉
    (1)10 inch cartridge use
    (2)Piping : 1 inch housing use
    (3)water temperature : 20℃

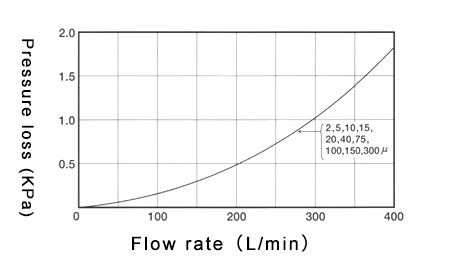

  • Air
    ※Including housing resistance

    〈Conditions〉
    (1)10 inch cartridge use
    (2)Piping : 1 inch housing use


Model

Model:

Please select and show model number.

Filter Design
Endcap Configuration
Length
(Excluding gaskets)
Grade
(Nominal)
Gasket Materials
