TITANIUM FIBER CARTRIDGE
Titanium sintered metal fiber nonwoven fabric
●Corrosion resistance，Chemical resistance
Titanium is excellent for corrosion resistance, it is suitable for filtration of sea water which can not be handled with stainless steel, for highly corrosive chemicals, liquid filtration such as solvents.
●Filtration efficiency,Filtration resistance
Titanium sintered metal fiber nonwoven fabric has a high filtering porosity of 65 to 80%, so it is a filter with low filtration resistance and high foreign matter collection ability.
Filter media is a two-layer structure and is suitable for liquid filtration with excellent pressure resistance and high viscosity.
Heatproof temperature: +300℃
It is economical because it can be washed and reused.
Compatible common products applicable (OD φ50 ～φ70 mm, Height 250, 500, 750 mm), Can be upgraded to general filtration equipment.
Media & Support： titanium, End Plate： Titanium, Other： Titanium
Filtration accuracy (Nominal)
20, 30, 40, 50, 80, 100μ
Filtration area (㎡)
|Nominal Length (in)||10||20||30|
|Filtration area (㎡)||0.05||0.1||0.15|
Forward Flow: 0.86 MPa, Reverse Flow: 0.07 Mpa
Ｈ type（Flat gasket type）
Ｗ type（222O‐ring type）
F type（226O‐ring type）

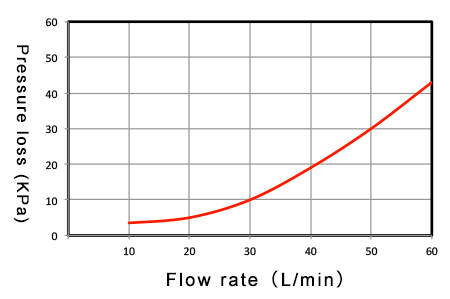

※Including housing resistance
（1）10 inch cartridge use
（2）Piping ： 1 inch housing use
（3）water temperature ： 20℃
Please select and show model number.
