SINTERMESH CARTRIDGE
(High Filtration Area Type)

SINTERMESH CARTRIDGE (High Filtration Area Type)

Feature


Pleated type cartridge

焼結金網
Sintered wire mesh

●1.5times filtration area by brazing process
Brazing processing has a pleat folding width higher than that of conventional products, the filtration area is 1.5 times, and it is most suitable for high flow liquid filtration.This will reduce the number of cartridges.

●Cleanliness
Superior in cleanliness because it is ultrasonically cleaned with RO water.

●Differential pressure resistance
Because filter media is sintered, there is no sieve opening and filtration accuracy is maintained.

●Pressure resistance
Filter media is a three-layer structure and is suitable for liquid filtration with excellent pressure resistance and high viscosity.

●Chemical resistance
Alkaline and acid type chemicals are available.

●Heat-resistance
Heatproof temperature : (-190℃~)+400℃

●Reuse
It is economical because it can be washed and reused

●Configuration
Compatible common products applicable (OD φ50 ~φ70 mm, Height 250, 500, 750 mm), Can be upgraded to general filtration equipment.

Specification

products

Filter composition

Media & Support: SUS316L,  End Plate: SUS316, Other: Nickel, SUS316

Filtration accuracy (Nominal)

2, 5, 10, 15, 20, 40, 75, 100, 150, 300μ

Filtration area (㎡)

Nominal Length (in) 10
Filtration area (㎡) 0.23

Pressure resistance

Forward Flow: 0.50 MPa, Reverse Flow: 0.07 Mpa

Structure

Mounting structure


  • H type(Flat gasket type)

Outline drawing


  • NJSP

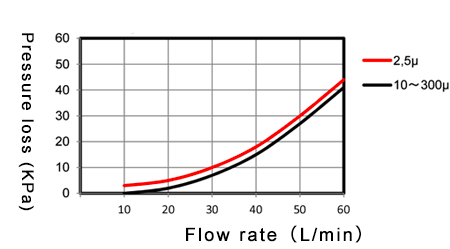

Flow characteristic

  • Water
    ※Including housing resistance

    〈Conditions〉
    (1)10 inch cartridge use
    (2)Piping : 1 inch housing use
    (3)water temperature : 20℃

Model

Model:NJSP-01-

Please select and show model number.

Grade
(Nominal)
Gasket Materials
